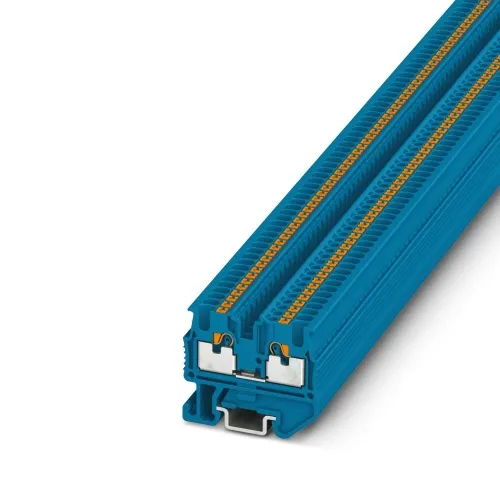

Professional Grade Phoenix Contact 3248101 Mini feed-through terminal block MPT 1,5/S BU

Professional Grade Phoenix Contact 3248101 Mini feed-through terminal block MPT 1,5/S BU

Original price was: $1.06.Current price is: $0.53.

SKU: SK0063195-US20260519-084255 Category: Tag:

Description

Phoenix Contact 3248101 A mini feed-through terminal block features a nominal voltage of 500 V and a nominal current capacity of 17.5 A, accommodating two connections via push-in connection methods. The rated cross-sectional area is 1.5 mm², with the top level offering 0.14-1.5 mm² options for varying application requirements, supported by an NS15 mounting type and a blue color scheme.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Width
3.5 mm
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
