Phoenix Contact 3208208 Feed-through terminal block PT 1,5/S-QUATTRO BU Special Discount

Phoenix Contact 3208208 Feed-through terminal block PT 1,5/S-QUATTRO BU Special Discount

Original price was: $1.79.Current price is: $0.90.

SKU: SK0063212-US20260519-084255 Category: Tag:

Description

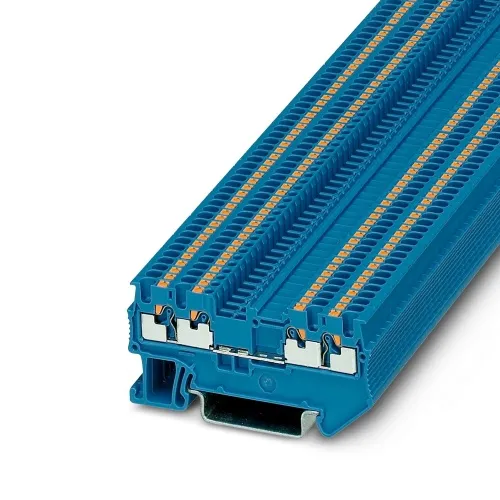

Phoenix Contact 3208208 The terminal block features a feed-through design with a nominal voltage of 500 V and a maximum current rating of 17.5 A, accommodating four connections via push-in connections. The cross-sectional area ranges from 0.14 mm² to 1.5 mm², with rated sizes for each level. It is mounted using the NS 35/7,5 and NS 35/15 types, with a blue color scheme.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
