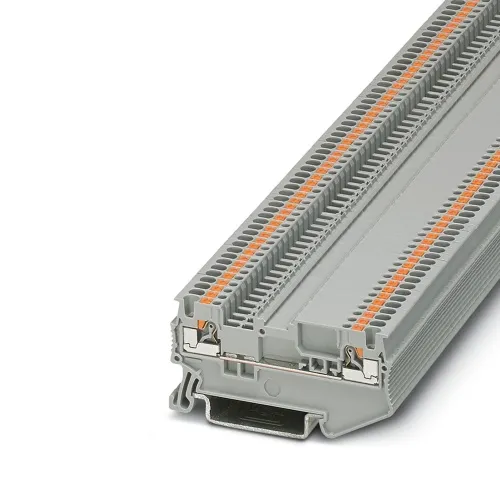

Trending Phoenix Contact 3210308 Feed-through modular terminal block PT 1,5/S-MTD

Trending Phoenix Contact 3210308 Feed-through modular terminal block PT 1,5/S-MTD

Original price was: $1.48.Current price is: $0.74.

SKU: SK0063094-US20260519-084255 Category: Tag:

Description

Phoenix Contact 3210308 The modular terminal block has a similar shape to the disconnect terminal block and is designed for feed-through applications, with a nominal voltage of 400V and a nominal current capacity of 17.5A at one level. The connection method involves pushing wires into place via a push-in connection system, with rated cross-sections ranging from 0.14mm2 to 1.5mm2. The block is mounted using the NS35/7.5 or NS35/15 mounting type and features a gray coloration.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Width
3.5 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
