Description

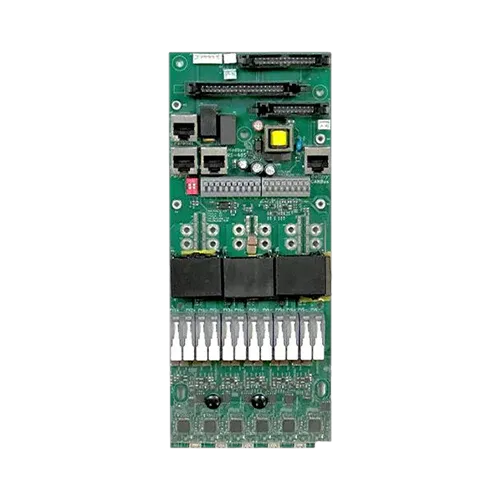

TX/RX Transmitter for Limitless-15k
Provides the permission-to-operate powerline communication (PLC) signal when paired with Sol-Ark O900-80V or any other SunSpec RSD Certified module-level power electronic devices to provide rapid shutdown system compliance as per 2017 & 2020 NEC 690.12 specifications. This transmitter can be installed in can be installed in existing Sol-Ark 15K previously commissioned.
No need to install cores for Power Line Communication (PLC), TX-15K-A has the transmitter built into the MPPT board of the Sol-Ark 15K.
- Power Supply: On board-48VDC(includes power cable)
- Dimensions (W x L): 110 mm x 214mm
- Max Number of Strings: 6
- Number of MPPTs: 3
- Max Power Consumption: 12W
