Description

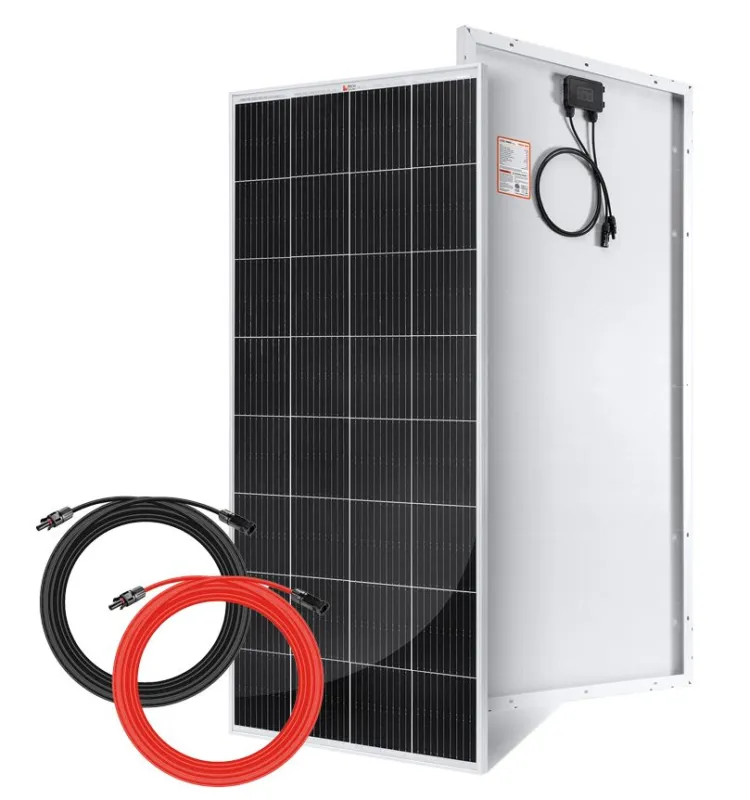

Add reliable, cost-effective Monocrystalline Solar Panels to your favorite Solar Generators & Portable Power Stations. Includes a Pair of 10 gauge – 20 Foot MC4 Extension Cables and (2) 200W 12V Monocrystalline Solar Panels. Produce up to 400W of power per hour with this all inclusive add on kit!
Unique Compatibility:
High Performance:
Industry Standard:
Rugged Durability:
Simple Installation:
25 Year Limited Warranty:
High Quality Material Design
Ultra Compact
Unique Compatibility:
| • | Compatible with the Ecoflow Delta Max, Delta Pro, Bluetti AC200P, Bluetti EP500, Zendure 1500/2000 and the Zendure Superbase V Power Solar Generators. |
| • | Add Solar Panels to your favorite Power Stations with the included 20′ PV Extension Cable! |
| • | Excellent low-light performance even on early mornings, evenings, and cloudy days. |
| • | Generates 9.8 amps of power, charges 12 volt batteries, 3′ quick connect cables with connectors, and works in series or in parallel. |
| • | Built with strong high transmission “Anti-reflective” coated tempered glass, and an anodized aluminum frame. |
| • | Fast and easy installation thanks to 14 pre-drilled holes that are compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts. |
| • | Features a 25-year limited warranty for power output; and 5-year limited warranty for material and craftsmanship. |
| • | Built with strong high transmission “Anti-reflective” coated tempered glass, and an anodized aluminum frame. |
| • | Fits Offgrid DIY solar projects, Offgrid Tiny Homes, Offgrid VanLife |
| • | Smallest Size Offgrid Solar Panel with Best Performing Efficiency! |
| • | Features a Lightweight anodized aluminum frame and High Transmission, AR (anti-reflective) Coated Tempered Glass. |
| • | Includes an IP65 rated waterproof junction box and IP67 rated waterproof solar connectors. |
Specifications
| General Information | |
| Manufacturer Name: | Rich Solar |
| Dimensions: | 58.7″ x 26.8″ x 1.4″ in |
| Weight: | 26.5 lbs |
| Temperature Range: | -40C – 90C |
| Warranty: | 25-year limited warranty for power output; and 5-year limited warranty for material and craftsmanship | Power |
| Maximum Power (Pmax): | 200W |
| Maximum Power Voltage (Vmp): | 20.4V |
| Maximum Power Current (Imp): | 9.80A |
| Open Circuit Voltage (Voc): | 24.3V |
| Short Circuit Current (Isc): | 10.2A |
| Maximum System Voltage (Vmax): | 1000VDC |
| Max Series Fuse Rating: | 20A |
| Weight: | 26.5 lbs |
Product Manual
