Sale!

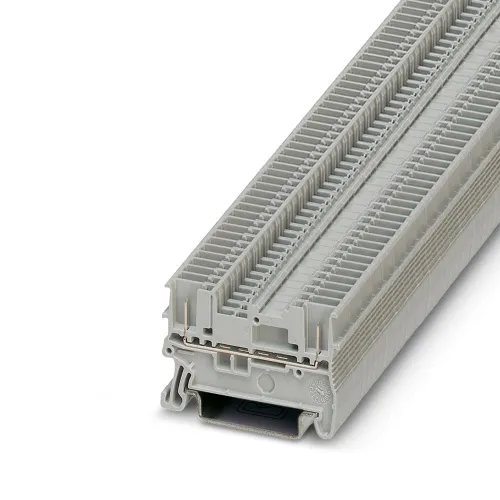

Phoenix Contact 3213784 Feed-through terminal block PT 1,5/S/2P Free Shipping

Phoenix Contact 3213784 Feed-through terminal block PT 1,5/S/2P Free Shipping

Original price was: $1.05.Current price is: $0.53.

SKU: SK0063334-US20260519-084255 Category: Tag:

Description

Phoenix Contact 3213784 The terminal block features a feed-through design with a nominal voltage of 500 V and a nominal current capacity of 17.5 A, accommodating two connections via plug-in connection method, with rated cross-sections ranging from 0.14 mm2 to 1.5 mm2. The mounting type is NS 35/7,5 or NS 35/15, and the color scheme is gray.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Width
3.5 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
