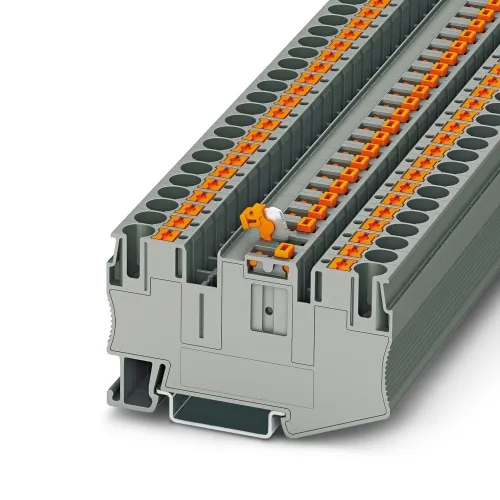

Phoenix Contact 3212160 Knife-disconnect terminal block PT 6-MT Holiday Sale

Phoenix Contact 3212160 Knife-disconnect terminal block PT 6-MT Holiday Sale

Original price was: $6.68.Current price is: $3.34.

SKU: SK0063145-US20260519-084255 Category: Tag:

Description

Phoenix Contact 3212160 The knife-disconnect terminal block features a nominal voltage of 500 V and a maximum current rating of 20 A, utilizing push-in connections with a minimum cross-sectional area of 0.5 mm2 to a maximum of 10 mm2 for safe operation. It is designed to be mounted using the NS 35/7.5 or NS 35/15 standard mounting systems, with a gray color designation.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
