Phoenix Contact 3206447 Feed-through terminal block QTC 2,5-QUATTRO BU Luxury

Phoenix Contact 3206447 Feed-through terminal block QTC 2,5-QUATTRO BU Luxury

Original price was: $4.04.Current price is: $2.02.

SKU: SK0073547-US20260519-084255 Category: Tag:

Description

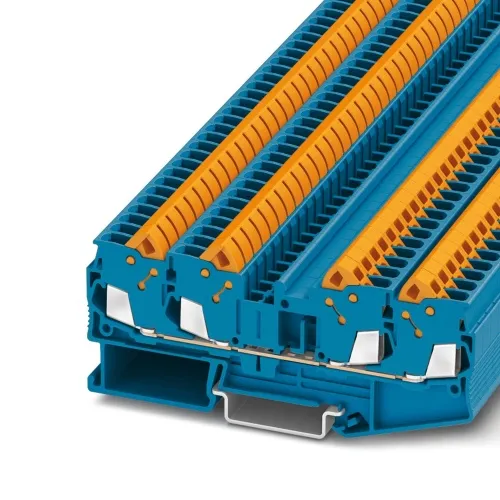

Phoenix Contact 3206447 The feed-through terminal block features a nominal voltage of 800 V and a maximum current rating of 24 A, supporting up to four connections through quick connection method. The rated cross-section is 2.5 mm² with an additional lower-level cross-section ranging from 0.5 mm² to 2.5 mm², secured via the NS 35/7,5 mounting type in a blue color finish.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
20
Terminal Block Connection Method
Quick Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
