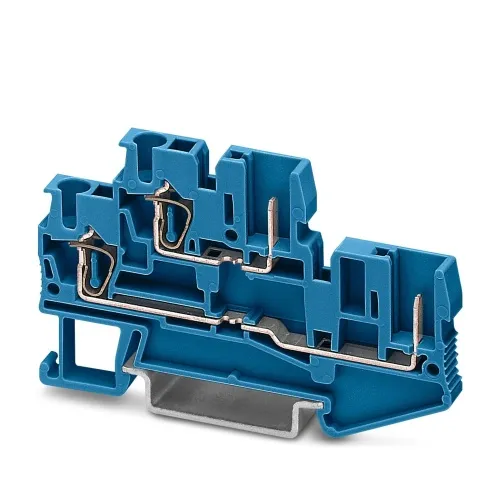

Phoenix Contact 3061512 Double-level terminal block STTB 2,5/4P BU Buy Online

Phoenix Contact 3061512 Double-level terminal block STTB 2,5/4P BU Buy Online

Original price was: $3.72.Current price is: $1.86.

SKU: SK0073602-US20260519-084255 Category: Tag:

Description

Phoenix Contact 3061512 The double-level terminal block features a plug-in connection method with voltage and current determined by the plug used, typically operating within nominal limits of 500V and 22A. The rated cross section is 2.5mm², while available options range from 0.08mm² to 4mm². Mounting types include NS 35/15 and NS 35/7.5, with the device featuring a blue color scheme.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Connection Method
Plug Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Plug-In Terminal Block
Sub Component
Double-Level Terminal Block
