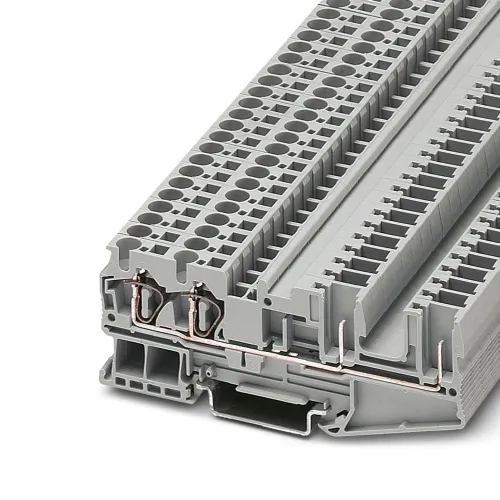

Phoenix Contact 3042845 Feed-through terminal block ST 4-QUATTRO/2P Trusted Brand

Phoenix Contact 3042845 Feed-through terminal block ST 4-QUATTRO/2P Trusted Brand

Original price was: $3.40.Current price is: $1.70.

SKU: SK0073622-US20260519-084255 Category: Tag:

Description

Phoenix Contact 3042845 A feed-through terminal block features a nominal voltage of 800 V and an accompanying current capacity of up to 32 A, with four available connections that utilize a spring-cage/plug-in connection method for the right-hand side connection. The rated cross-sectional area is 4 mm2, but it can accommodate smaller cross-sections ranging from 0.08 mm2 to 6 mm2, and mounting types include NS 35/7,5 and NS 35/15, all with a standard gray coloration.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
