Phoenix Contact 3037397 Feed-through terminal block ST 4-TWIN WH Must Have

Phoenix Contact 3037397 Feed-through terminal block ST 4-TWIN WH Must Have

Original price was: $3.32.Current price is: $1.66.

SKU: SK0073541-US20260519-084255 Category: Tag:

Description

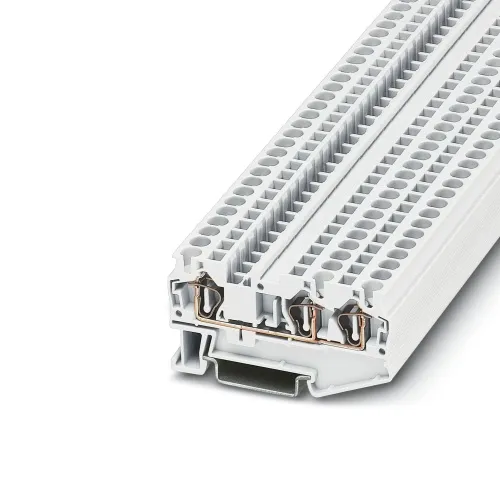

Phoenix Contact 3037397 This terminal block features a feed-through design with specifications including an nominal voltage of 800 V and a nominal current capacity of 32 A. It has three connections made using a spring-cage connection method, while its rated cross-section ranges from 0.08 mm2 to 6 mm2. The block is mounted using the NS 35/7,5 and NS 35/15 mounting types, and is characterized by its white coloration.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Component Color
White
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
