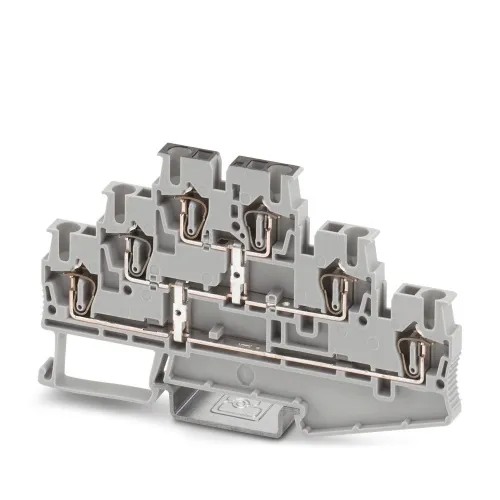

Phoenix Contact 3036068 Multi-level terminal block ST 2,5-3PV Last Chance

Phoenix Contact 3036068 Multi-level terminal block ST 2,5-3PV Last Chance

Original price was: $10.66.Current price is: $5.33.

SKU: SK0073590-US20260519-084255 Category: Tag:

Description

Phoenix Contact 3036068 A multi-level terminal block with a spring-cage connection has a nominal voltage of 500 V and a nominal current capacity of 20 A, accommodating up to six connections. The cross-sectional area at each level varies from 0.08 mm2 to 4 mm2, while the overall rated cross-section is 2.5 mm2, and the mounting type used is NS 35/7,5 or NS 35/15, with a standard gray color.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Multi-Level Terminal Block
