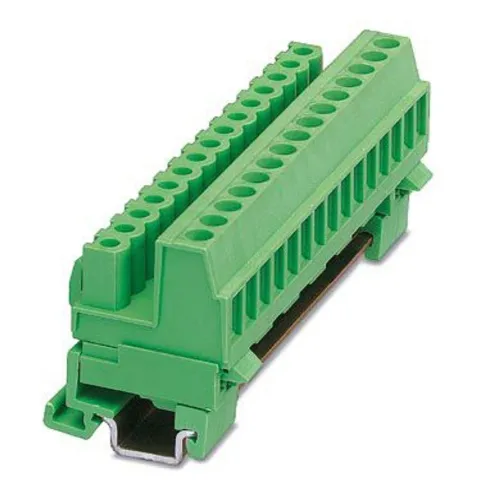

Phoenix Contact 1833014 DIN rail connector MCVK 1,5/16-GF-3,81 Direct From Factory

Phoenix Contact 1833014 A DIN rail connector with a nominal cross-section of 1.5mm² is available, characterized by a green color, rated voltage of 160V, and a current capacity of 8A. The connection features a pin-type contact surface, accommodating 16 potentials across one row of 16 positions, secured by 16 connections. This connector falls within the MCVK 1.5/…-GF product range, with a pitch of 3.81mm, utilizing a screw connection method with tension sleeve and L Slotted screw heads. The conductor and PCB connection direction is at 0°, and it employs the COMBICON MC 1.5 plug-in system, secured by a screw locking mechanism, mounted through a threaded flange and packaged in cardboard.
