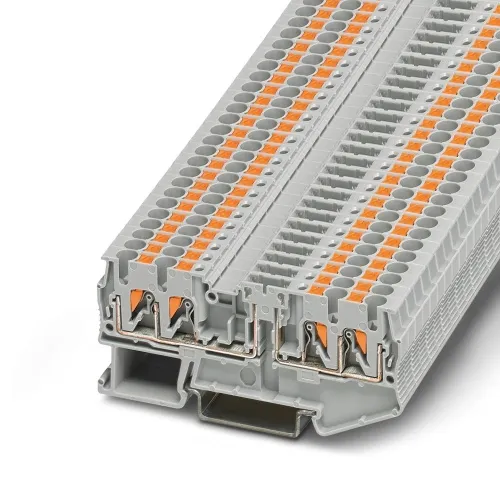

Next Day Delivery Phoenix Contact 3270094 Disconnect terminal block PTC 2,5-QUATTRO-TG

Next Day Delivery Phoenix Contact 3270094 Disconnect terminal block PTC 2,5-QUATTRO-TG

Original price was: $4.34.Current price is: $2.17.

SKU: SK0063123-US20260519-084255 Category: Tag:

Description

Phoenix Contact 3270094 To ensure safe operation, the maximum load current of all connected conductors must not exceed the total current, taking into account the plug’s voltage and current ratings. The standard values for these parameters are 400 V for voltage and 20 A for nominal current, with a connection method that involves pushing wires into place. The allowed cross-sectional area ranges from 0.14 to 4 mm2, while specific mounting requirements include NS 35/7.5 and NS 35/15 configurations, and the color of choice is gray.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
