Description

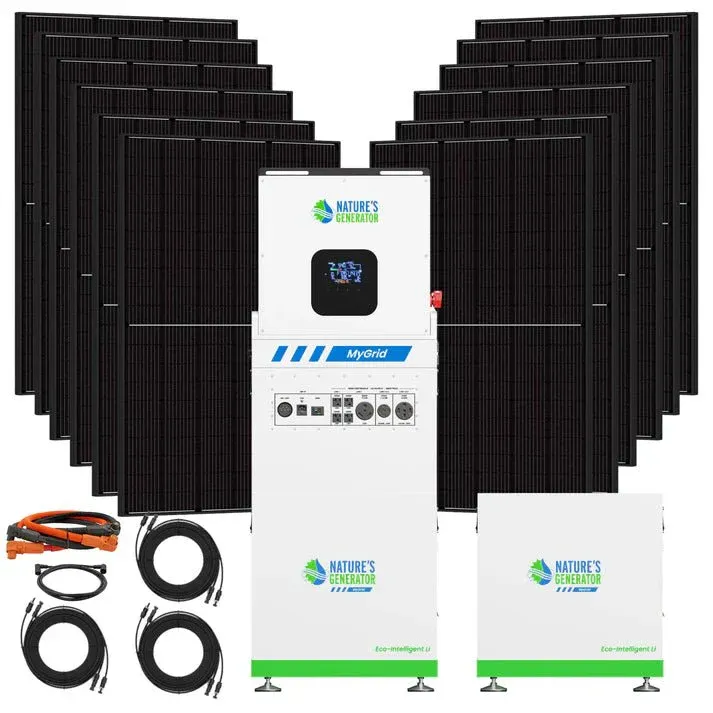

- Complete Solar Power Bundle: Includes the MyGrid 10K solar generator with high-efficiency solar panels to capture free clean energy right out of the box.
- Reduce Electricity Bills: Store solar or off-peak energy and use it during high-rate periods to lower electricity costs and increase energy independence.
- Reliable Whole-Home Performance: Delivers 10,000 W continuous output with a 10,496 Wh LiFePO₄ battery, dependable whole-home power for outages or off grid use or uninterrupted power supply.
- Expandable for Growing Needs: Combine two units for 20,000W output, expand battery capacity to 73,742Wh, and integrate up to 12,000W solar panels or 350W wind turbine as energy needs grow.
- Dual Voltage Compatibility: Supports 120V, 120/240V and 120/208V charging and discharging, suitable for residential, light commercial and AC coupling applications.
- Fast Recharge Performance: Advanced charging technology enables up to 80% charge in approximately 2 hours, minimizing downtime
- Fast & Easy Installation: Plug-and-play design ensures quick setup, lower installation cost and hassle-free relocation, providing flexibility for homeowners, renters, and temporary spaces.
- Smart Protection & Compact Safe Design: Integrated Battery Management System (BMS) continuously monitors and protects battery health for long life, while the compact, eco-friendly, and UL 1741 certified system ensures safe, sustainable home energy.
Natures Generator MyGrid 10K Whole Home Generator
| Battery | |
|---|---|
| Type | Lithium Iron Phosphate (LiFePO₄) |
| Capacity | 51.2V 205Ah (10496Wh) |
| Life Cycles | > 6000 Cycles |
| Self Discharge | Recommended recharging every 6 months |
| Inverter | |
| Output Continuous Power | 10,000W |
| Output Peak Power | 20,000W |
| Output Voltage | 120V/240V Split Phase or 120V/208V 2 of 3 Phases |
| Output Frequency | 60Hz |
| Output Power Form | Pure Sine Wave |
| Output Ports | |
| 4x NEMA 5-20R Outlet 1x NEMA TT-30R Outlet 1x NEMA L14-30R Outlet 1x NEMA 14-50R Outlet |
|
| Input Ports | |
| 2x Solar Input Ports 1x Wind Input Port 1x 120Vac Input Port 1x 208Vac or 240Vac Input Port |
|
| Charges | |
| 120Vac Charger | 1000W |
| 208Vac or 240Vac Charger | 10,000W |
| Solar Charger | 12,000W 120Vdc–550Vdc |
| Solar Charge Mode | MPPT |
| General | |
| Generator Dimensions | 21.8 in x 8.5 in x 38.5 in |
| Battery Dimensions | 21.8 in x 8.5 in x 23.4 in |
| Optimal Operating Temperature | 68 – 86 ºF |
| Storage Temperature | 14 – 113 ºF |
| Battery Charging Temperature | 32 – 113 ºF |
| Battery Discharging Temperature | 14 – 113 ºF |
| Generator Weight | 152 lbs |
| Battery Weight | 213 lbs |
Natures Generator 410 Watt Monocrystalline Solar Panel
| Power Rating | |
|---|---|
| Maximum Power (Pmax) | 410W |
| Maximum Power Voltage (Vmp) | 31.35 |
| Maximum Power Current (Imp) | 13.08 |
| Open-circuit Voltage (Voc) | 37.12 |
| Short-circuit Current (Isc) | 13.96 |
| Module Efficiency STC | 20.97% |
| General | |
| Front Glass | 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Operation Temperature | -40°F ~+185°F |
| Junction Box | IP68 Rated, connector compatible with MC4 |
| Output Cables | 47.24 in |
| Fire rating | UL: Type 1, IEC: Class C |
| Dimensions | 69.09 in x 40.87 in x 1.18 in |
| Weight | 45.19 lbs |
| Cell Type | Mono PERC 182×91mm |
| No.of Half-cells | 108 (6×18) |
| Frame | Anodized Aluminum Alloy |
