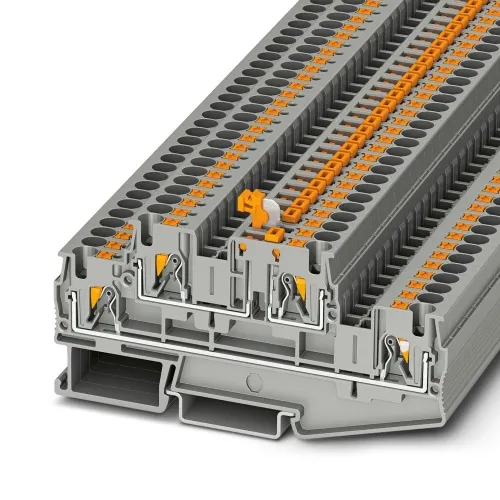

Limited Time Phoenix Contact 3211909 Disconnect terminal block PTTB 4-TG

Limited Time Phoenix Contact 3211909 Disconnect terminal block PTTB 4-TG

Original price was: $5.19.Current price is: $2.60.

SKU: SK0063143-US20260519-084255 Category: Tag:

Description

Phoenix Contact 3211909 The terminal block’s configuration varies depending on the plug used, with a nominal voltage of 500 V and a maximum current capacity of 28 A, supported by two levels of connections using push-in methods, rated for cross sections between 0.2 mm² and 6 mm², mounted on NS 35/7.5 or NS 35/15 modules, and featuring a gray color scheme.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Disconnect Terminal Block
