Description
Phoenix Inverter Model
12/250
24/250
48/250
|
12/375
24/375
48/375
|
12/500
24/500
48/500
|
12/800
24/800
48/800
|
| Model #: (12V Models) |
PIN122510500 |
PIN123750500 |
PIN125010500 |
PIN0128010500 |
| Continuous power at 25°C |
250 VA |
375 VA |
500 VA |
800 VA |
| Continuous power at 25°C / 40°C |
200 / 175W |
300 / 260W |
400 / 350W |
650 / 560W |
| Peak power |
400W |
700W |
900W |
1500W |
| Output AC |
230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0.1% |
| Input Voltage Range |
9.2 – 17 / 18.4 – 34.0 / 36.8 – 62.0V |
| DC low shut down (adjustable) |
9.3 / 18.6 / 37.2V |
| DC low restart and alarm (adjustable) |
10.9 / 21.8 / 43.6V |
| Battery charged detect (adjustable) |
14.0 / 28.0 / 56.0V |
| Maximum efficiency |
87 / 88 / 88% |
88 / 89 / 90% |
90 / 90 / 91% |
90 / 90 / 91% |
| Zero load power |
4.2 / 5.2 / 7.9W |
5.6 / 6.1 / 8.5W |
6 / 6.5 / 9W |
6.5 / 7 / 9.5W |
| Default zero-load power in ECO mode |
0.8 / 1.3 / 2.5W |
0.9 / 1.4 / 2.6W |
1 / 1.5 / 3.0W |
1 / 1.5 / 3.0W |
| Battery connection |
Screw Terminals |
| Maximum cable cross-section |
10 mm² / AWG8 |
10 mm² / AWG8 |
10 mm² / AWG8 |
25 mm² / AWG4 |
| Weight |
2.4 kg / 5.3 lb |
3.0 kg / 6.6 lb |
3.9 kg / 8.5 lb |
5.5 kg / 12 lb |
Dimensions
(hxwxd, mm)
(hxwxd, inch) |
86 x 165 x 260 mm
3.4 x 6.5 x 10.2 inch |
86 x 165 x 260 mm
3.4 x 6.5 x 10.2 inch |
86 x 172 x 275 mm
3.4 x 6.8 x 10.8 inch |
105 x 216 x 305 mm
4.1 x 8.5 x 12.1 inch
(12V model:
105 x 230 x 325 mm) |

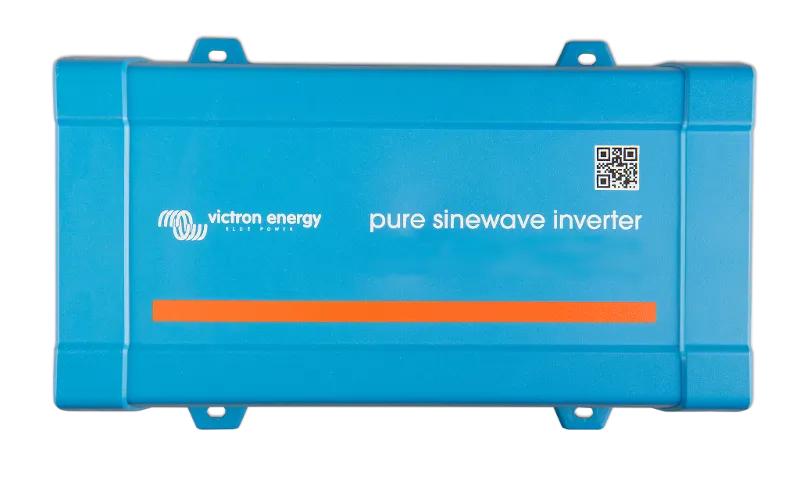

The Victron Energy Phoenix 800VA Pure Sine Inverter with VE.Direct is a compact and reliable inverter for up to 640W continuous with mixed loads, and is compatible with the optional Victron Energy VE.Direct Bluetooth Dongle for easy configuration and monitoring! Available in 12V, 24V, and 48V models; select your input voltage above!
Please Note: 24V and 48V models are special-order and may require 4-6 weeks additional shipping/handling time.
