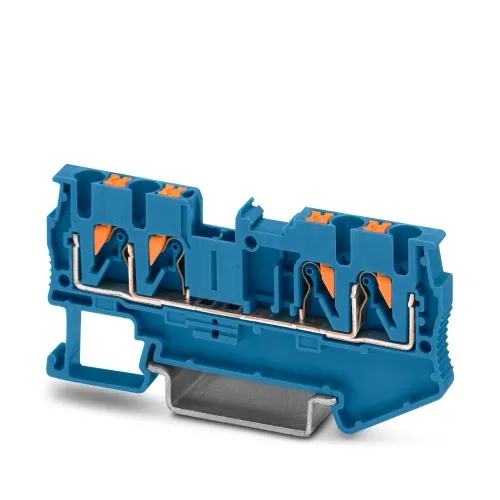

Holiday Sale Phoenix Contact 3209581 Feed-through terminal block PT 2,5-QUATTRO BU

Holiday Sale Phoenix Contact 3209581 Feed-through terminal block PT 2,5-QUATTRO BU

Original price was: $2.35.Current price is: $1.18.

SKU: SK0063230-US20260519-084255 Category: Tag:

Description

Phoenix Contact 3209581 A feed-through terminal block with a nominal voltage of 800V and a nominal current capacity of 24A is designed for use with 4 connections, employing a push-in connection method. The rated cross-sectional area ranges from 2.5mm² to 4mm², while the actual cross-section varies between 0.14mm² to 4mm². This terminal block can be mounted using two different types of mounting systems, namely NS35/7,5 and NS35/15, and features a blue color scheme.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
