Description
Best Uses and Key Features:
| • | Perfect for Commercial Size Signs, Billboards, Monuments, Entrances, Store Fronts, Landscapes, Fountains, Home Up-lighting, and so much more! |
| • | Our Custom Lighting Kits only include the highest-end components. Pre-Wired, Pre-Configured, Plug and Play for Easy Set Up |
| • | 5+ Year Warranty on All Major Components! (Compared to industry standard 1 year warranty) |
| • | In-built 3 Day Autonomy means you will see Reliable Operation regardless of weather conditions and overcast days. |
| • | Set up Custom Run Times directly from your Phones and Tablets with the User Friendly Mobile Application! |
| • | Our Polycrystalline Solar Panels undergo rigorous quality control to meet the highest international standards |
| • | The Unique frame is designed with high mechanical strength for easy installation and long lasting performance |
| • | Outstanding electrical performance under high temperature and low irradiance conditions. |
| • | Includes 5 Yr limited warranty on materials & workmanship and 25 Yr on >80% power output and 10 Yr on >90% power output. |
| • | Features built-in Bluetooth APP connectivity for wireless set-up, monitoring and update capabilities. |
| • | Features Ultra-fast Maximum Power Point Tracking Technology. Even in clouded sky conditions, when light intensity is changing continuously, this ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. |
| • | Software allows for Day/Night timing and light dimming options for full customization! |
| • | Includes Extended 5 Year Manufacturer Warranty! |
Solar Charge Controller Smart Device Application:
| • | Includes replaceable AGM Lead Acid Battery with Prorated 5 Year Manufacturer Warranty! |
| • | Features 50,000+ Hour guaranteed lifespan. |
| • | The High Quality LEDs output a massive 3600 Lumens! |
| • | Includes Extended 5 Year Manufacturer Warranty for guaranteed longevity! |
| • | Flood light is CE, Rohs IP65 Certified. |
| • | Includes Powder Coated Aluminum Nema 3R Enclosure for long lasting performance |
| • | The Pad lockable latch means secure installation no matter the location. |
| • | UV Resistant build with high temperature silicon for reliable operation in the harshest of conditions. |
Aluminum Nema 3R Enclosure (Front & Back):
Zone Map:
Explanation of Solar Zones:
Our kits are designed for three-day autonomy. This means you will see full operation even after receiving no sunlight for 3 full days!
By finding your location on the above map. You can determine which Solar Zone your installation will be located in. This information displays the Historical Peak Sun Hours in the worst month of the year with solar panels at a 45 degree angle.
Installation Tips:
Make sure your intended location for the solar panel receives direct sunlight between 9 AM and 3 PM.
When installing the panel, make sure it is facing solar south. (South on Google Maps is solar south)
Please Note: This product ships via freight carrier. You will need to be present for delivery. Carrier will contact you by phone regarding expected time of delivery.
Custom Solar Lighting Form – Need Help Finding the Perfect Lighting Kit? No Problem!
Get a Personalized Quote for Custom Solar Powered Low Voltage Sign, Landscape, Street/Municipal, Indoor/Outbuilding Lighting Systems

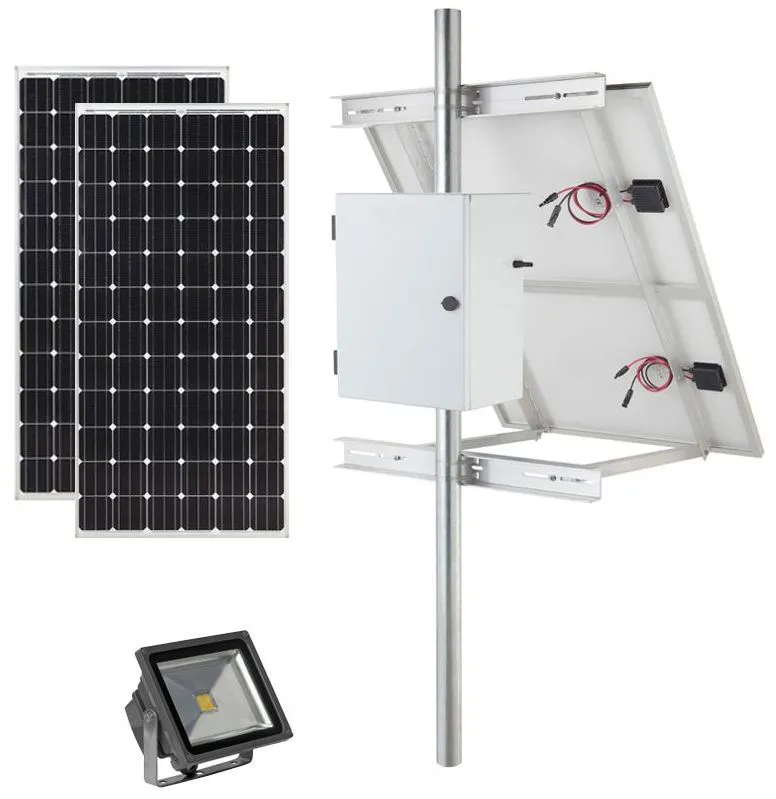

Specifications
| SPECIFICATIONS: LIGHT | |
| Power: | 30 Watt (1 x 30 watt light) |
| Comparable to: | 200 Watt Metal Halide |
| Dimensions: | 8.86″ x 7.28″ x 5.12″ |
| DC Voltage: | 24 Volts |
| Certifications: | UL, CE, Rohs IP65 |
| Life Span: | 50,000 Hours |
| Warranty: | 5 years |
| SPECIFICATIONS: SOLAR | |
| Power: | 200 Watt (2 x 100 watt solar panel) |
| Dimensions Per Panel: | 47″L x 21.10″W x 1.6″H |
| Weight Per Panel: | 18 lbs |
| Voltage (VOC)/Current (IMP): | 45.6 Volts DC/5.51 Amps |
| Module Efficiency: | 19% |
| Operating Temperature: | -40C to 85C |
| Certifications: | ETL UL CE IEC ISO TUV |
| Warranty: | 10 yr Product 25 yr Power >80% |
| SPECIFICATIONS: OTHER COMPONENTS | |
| Battery: | 1 x 140 Ah AGM Battery |
| Battery Warranty: | Prorated 5 year |
| Charge Controller: | 15 Amp |
| Charge Controller Warranty: | 5 years |
| Time Control Setting: | 2 – 12 hours, Dusk until Dawn |
| Housing Box: | Fiberglass, NEMA4 |
| Housing Box Warranty: | 5 years |
| Solar/Light Connecting Cord: | 16.4ft (5 Meters) |
| Solar Panel Racking: | Top of Pole Mount System – *Pole not included |
| Racking Dimensions: | 52″L x 5″W x 5″H |
| Battery Life Between Charge: | Up to 63 Hours |
