Description

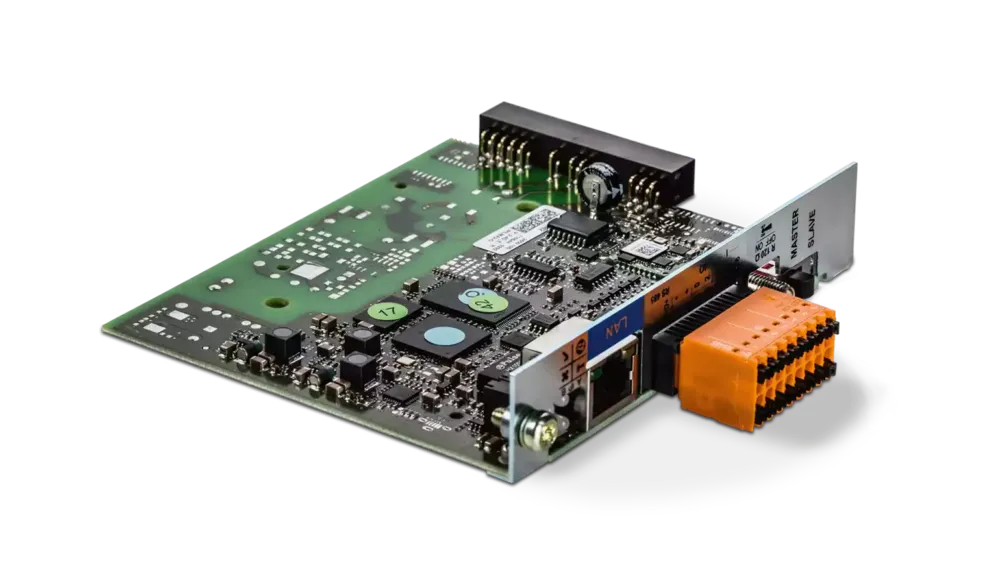

Fronius DataManager 2.0 – IG Plus A Inverters
The Datamanager 2.0 WLAN (PN 4,240,034,Z) works with:
-
Fronius IG Plus A
-
Fronius IG Plus V
-
Fronius IG
-
Fronius IG TL
Including models like:
-
IG Plus 3.0-1 A
-
IG Plus 5.0-1 A
-
IG Plus 7.5-1 A
-
IG Plus 10.0-1 A
The Fronius DataManager 2.0 is the advanced solution for data monitoring and communications, specifically designed for IG Plus A inverters. By connecting to the internet via Ethernet or Wi-Fi, it sends real-time PV system data to the Fronius Solar.web online portal, offering continuous insights into system performance. It also allows direct internet connectivity via Wi-Fi and features an integrated web server for configuration and monitoring.
Features
- Daisy Chain Capability: Connect up to 99 inverters with a single DataManager 2.0 card. Install one card in an inverter and daisy-chain additional inverters for unified monitoring.
- Easy Installation: Use the commissioning wizard app on a tablet or smartphone for straightforward provisioning, configuration, and registration on the Fronius Solar.web portal.
- Universal Data Communication: Seamlessly integrate with both Fronius Solar.web and third-party systems for comprehensive data monitoring.
- Professional Visualization: Access advanced data visualization through the Fronius Solar.web online portal.
| General Data | |
|---|---|
| Length | 0.866 inches |
| Weight incl. packaging | 1.212 lb |
| Storage capacity | Max. 4096 days |
| Supply voltage | 12 V DC – power supplied by inverter |
| Energy consumption | < 2.0 W |
| Operating temperature range | -20°C – +65°C |
| Interfaces | |
| Ethernet (RJ45 socket) | LAN, 10/100 MBit / Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
| RS422 (RJ45 socket) | – |
| RS422 (RJ45 socket) | Fronius Solar.Net IN |
| WLAN | Wireless standard 802.11 b/g/n / Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
| 6 digital inputs | Interface to ripple control receiver |
| 4 digital inputs/outputs | Interface to ripple control receiver, load management |
| RS485 | Modbus RTU SunSpec or meter connection |
