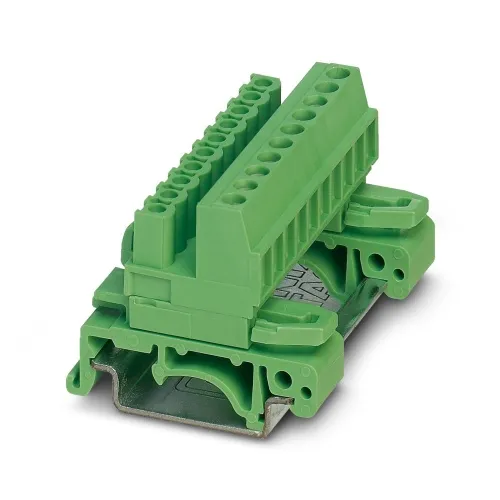

Final Sale Phoenix Contact 1788091 DIN rail connector UMSTBVK 2,5/19-GF-5,08

Phoenix Contact 1788091 The DIN rail connector has a nominal cross-sectional area of 2.5mm² and is green in color, with a maximum current rating of 12A at a rated voltage of 320V. The contact surface features tin plating, with a pin connection type and 19 individual potentials. It consists of one row with 19 positions and 19 connections, part of the UMSTBVK 2,5/..-GF product range. The connector has a standard pitch of 5.08mm, featuring a screw connection with tension sleeve, L-slotted screw head, and 1 solder pin per potential. It utilizes the COMBICON MSTB 2,5 plug-in system, aligns to the standard pin connector pattern, is secured by a screw locking mechanism, mounted using a threaded flange, and packaged in cardboard.
