Description

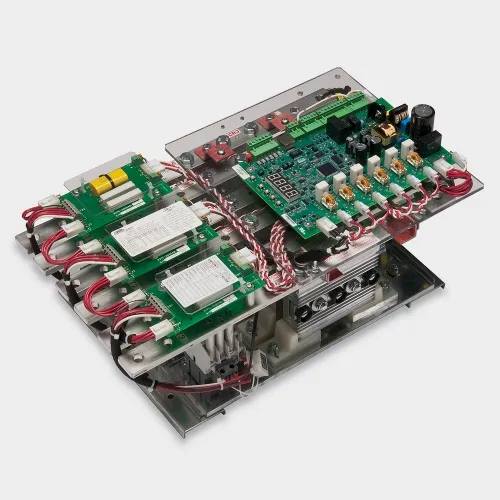

Benshaw RB2-1-S-052A-12C – RB2 Open Chassis Soft Starters are reliable, solid state starters suitable for various industrial applications. They come in different variants (Standard Duty, Heavy Duty, or Severe Duty) and voltage ratings ranging from 208-575VAC up to 838A. The RB2 soft starter features a modular design with separate poles for each phase, including an integral bypass contactor for easy maintenance. ‘s MX2 control technology offers adjustable overload settings for motor protection and customizable motor ramp profiles based on load. Programming options include a board-mounted LED keypad, Modbus register mapping, or an optional remote mount LCD keypad.
Specifications
Starter Coil Voltage (Control)
120 VAC
Starter Horsepower
20 HP @ 240 V
Starter Horsepower
40 HP @ 480 V
Starter Horsepower
50 HP @ 575 V
Starter Horsepower
15 HP @ 208 V
Manufacturer
Benshaw
Starter Voltage Range
208-575 VAC
Starter Housing
Open
Starter Voltage
208-575 VAC
Component
Open Chassis Starter
Starter Current Rating
45 Amp
Starter Current Rating
52 Amp
Starter Current Rating
54 Amp
