Description

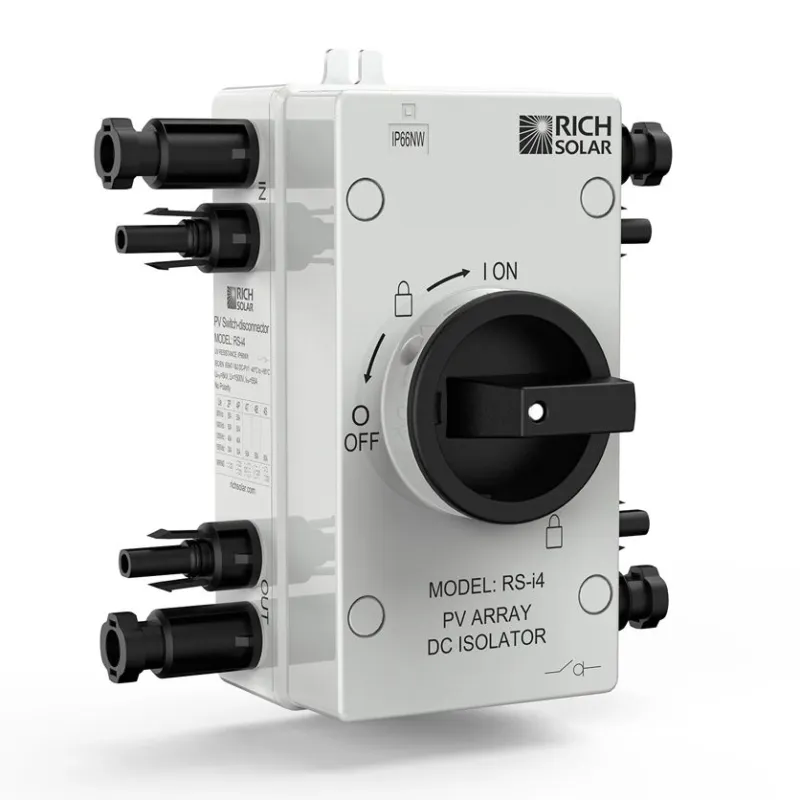

Our Solar Quick Disconnect Switch gives your solar system a convenient, extra safety and flexibility when maintenance is required on your system. This quick disconnect switch is also ideal for applications such as cabins or vacation homes that don’t require delivery of constant solar power. Simply disconnect your solar array and reconnect when needed. This switch is 1500V with 55 Amp circuit compatible with small and large off-grid or grid tied solar systems.
| • | Quickly disconnect DC power from your solar array to the charge controller, batteries and/or inverter. |
| • | Designed for Outdoor rated use and installation. |
| • | Can be used in both Off and Grid-tied applications. |
| • | Features Isolated SAFE-LOCK technology with three rotational positions reducing the risk of tampering. |
| • | Ensures the disconnection of load circuits and suppression of the arc in under 5 mil secs. – Single pull double throw 2IO |
| • | Output and input connections are built for easy set up and installation. |
Specifications
| General Information | |
| Manufacturer Name: | Rich Solar |
| Max. Rated Current: | 55 Amp |
| Volts: | Up to 1500 volts @ 32 amps |
| Poles / Circuit: | 4P in series |
| Supported PV Strings: | 2 PV strings |
| Impulse Withstand Voltage: | 8 kV |
| Certifications: | TUV, SAA, CE, IP certified & ROHS compliant |
| Rated: | Outdoor |
| Temperature Requirements: | -40 degrees C to 70 degrees C |
| Dimensions: | 4″ H x 9 3/8″ W x 3 1/4″ D |
