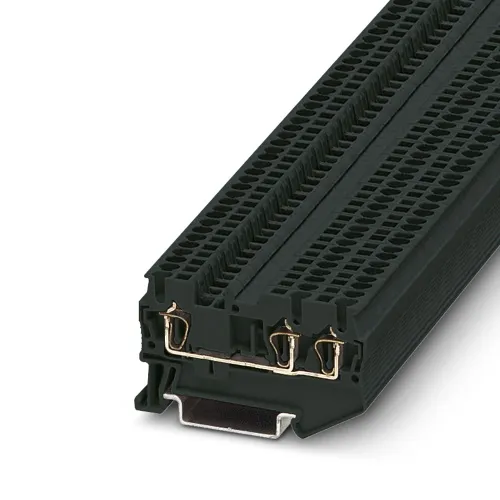

Certified Phoenix Contact 3037300 Feed-through terminal block ST 1,5-TWIN BK

Certified Phoenix Contact 3037300 Feed-through terminal block ST 1,5-TWIN BK

Original price was: $1.82.Current price is: $0.91.

SKU: SK0073577-US20260519-084255 Category: Tag:

Description

Phoenix Contact 3037300 A feed-through terminal block features a nominal voltage of 500 V and is designed to handle a nominal current of 17.5 A through three connections secured via spring-cage connections, with rated cross-sections ranging from 0.08 mm2 to 1.5 mm2, and can be mounted using the NS 35/7,5 or NS 35/15 types, and is typically black in color.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Max Wire Size
16
Terminal Block Component Color
Black
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
