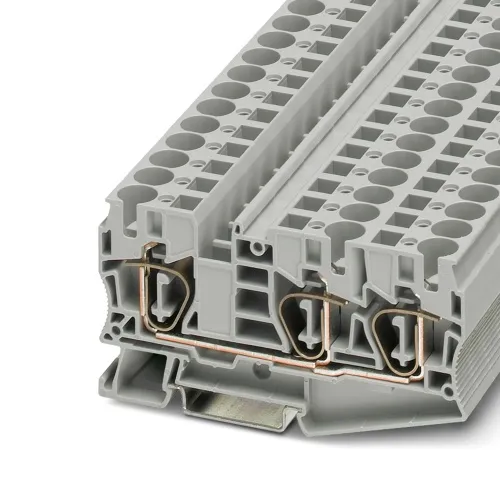

Budget Phoenix Contact 3035288 Feed-through terminal block ST 10-TWIN

Budget Phoenix Contact 3035288 Feed-through terminal block ST 10-TWIN

Original price was: $5.84.Current price is: $2.92.

SKU: SK0073555-US20260519-084255 Category: Tag:

Description

Phoenix Contact 3035288 The terminal block features a feed-through design with specifications including a nominal voltage of 1000V and a maximum current of 57A, supported by three connections that utilize spring-cage technology. The rated cross-sectional area ranges from 0.2mm² to 16mm², and the mounting type is classified as NS35/7.5 or NS35/15, with an additional color specification of gray.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
57 Amp
Terminal Block Min Wire Size
24
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Max Wire Size
6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
