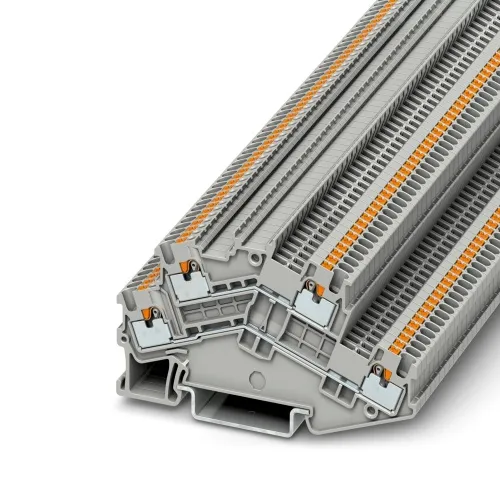

Brand New Phoenix Contact 3214657 Double-level terminal block PTTBS 1,5/S

Brand New Phoenix Contact 3214657 Double-level terminal block PTTBS 1,5/S

Original price was: $2.50.Current price is: $1.25.

SKU: SK0063303-US20260519-084255 Category: Tag:

Description

Phoenix Contact 3214657 The double-level terminal block features a nominal voltage of 500V and a nominal current capacity of 16A, utilizing push-in connections for both the first and second levels. The rated cross-sectional area ranges from 0.14mm2 to 1.5mm2, and it is designed for mounting using NS35/7.5 or NS35/15 types, with a standard coloration of gray.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Terminal Block
