Affordable Phoenix Contact 3210282 Component terminal block PTTBS 2,5-DIO/O-U

Affordable Phoenix Contact 3210282 Component terminal block PTTBS 2,5-DIO/O-U

Original price was: $8.90.Current price is: $4.45.

SKU: SK0063171-US20260519-084255 Category: Tag:

Description

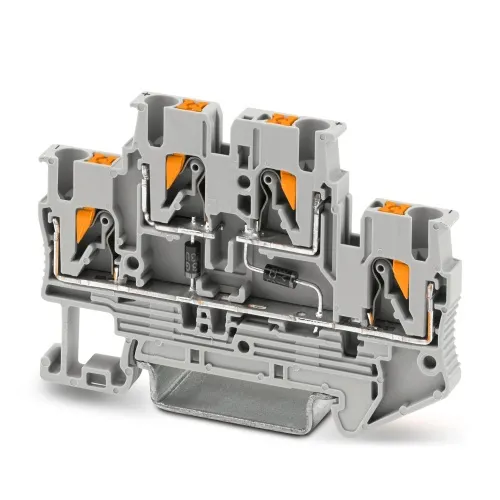

Phoenix Contact 3210282 The component terminal block has a built-in 1N4007 diode with a nominal current rating of 0.5 A and four push-in connections. The cross-sectional area for the first and second levels is between 0.14 mm2 to 4 mm2, while the third and fourth levels have a smaller area. The terminal block comes in two mounting types, NS 35/7.5 and NS 35/15, with a gray color.

Specifications

Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Component Terminal Block
