Sale!

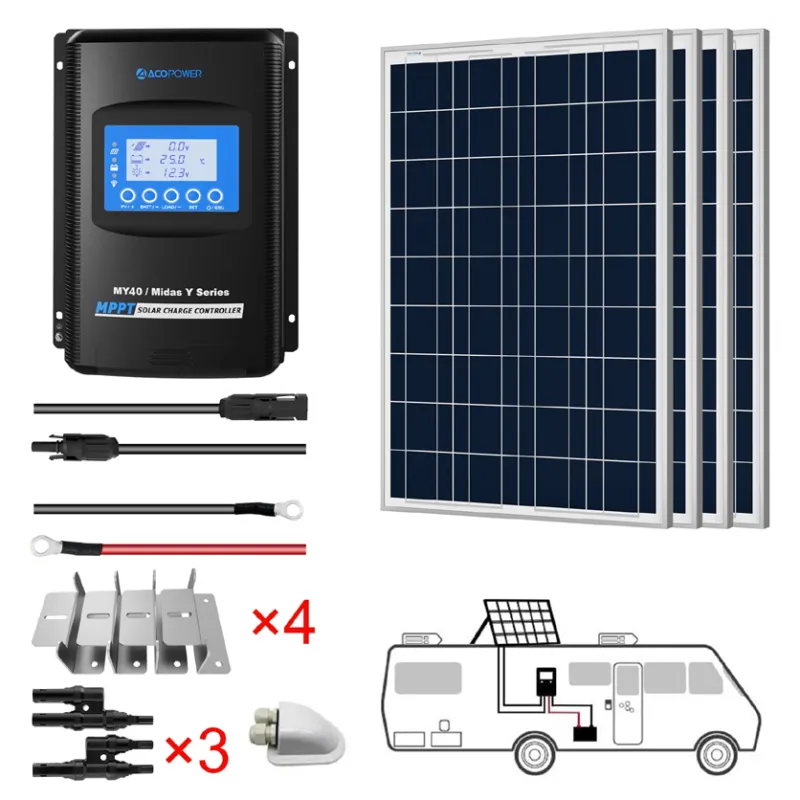

ACO Power 400W 12V Solar RV Kit - 40A MPPT Charge Controller Low Price

ACO Power 400W 12V Solar RV Kit – 40A MPPT Charge Controller Low Price

Original price was: $632.99.Current price is: $253.20.

SKU: SK0024084-US20260519-084255 Category:

Description

Going off-grid has never been easier! Our ACO Power 400W 12V Solar RV Kit gives you the freedom to enjoy your lifestyle without the need for noisy gas generators. Includes an MPPT 40A Charge Controller, (4) 100 Watt Polycrystalline solar panels and all the cables needed for an easy DIY set up. Our simple installation process is perfect for RVs, motor homes, tiny homes and so much more.
Simple, Reliable, DIY Solar System:

• Designed for RVs, cabins, tiny homes, sheds, boats, back-up power and remote power use.
• Easy Installation process. With pre-drilled holes; each solar panel comes with 12AWG cable with MC4 male/female quick connectors for easy configuration.
• 25-year transferable power output warranty on panels and 1-year warranty on all additional components
MPPT Charge Controller:

• Our Solar Charge Controller has user adjustable settings. The LCD screen shows, voltage, solar panel status, battery state of charge, and DC load draw. Compatible with lead acid, AGM, gel, and lithium batteries.
• Offers Ultra-fast tracking speed for the fastest power production possible.
• User programmable for selecting battery types, load control, voltage, etc.
• Nominal System Voltage range: 12V/24V or Auto
Polycrystalline Solar Panels:

• The Polycrystalline solar cells feature a power efficiency of 14.35% combined with the MPPT charge controller peak efficiency of 99.5% for quick power production.
• Features an Operating Temperature of -40C to 85C making is perfect for all environments.

Please Note: Does NOT Include Batteries

Add the battery of your choice by clicking below:
12 Volt 100 Amp Hour Sealed Lead Acid Battery by UPG
Keep it classic with our SLA Batteries
Lion Safari UT 700 Lithium Iron Phosphate (LiFePO4) Battery
Go Lightweight with Lithium Technology
Lion Safari UT 1300 Lithium Iron Phosphate (LiFePO4) Battery
Keep it Lightweight and Powerful with the largest Lithium Battery we offer!

Specifications

100 Watt Poly Solar Panel
Manufacturer: ACO Solar
Maximum Power at STC (Pmax): 100W
Maximum Operating Voltage (Vmp):17.48 V
Maximum Operating Current (Imp): 5.72 A
Dimensions: 40.2″ x 26.4″ x 1.4″ in (1020 x 670 x 35 mm)
Open-Circuit Voltage (Voc): 22V
Short-Circuit Current (Isc): 6.21A
Operating Temperature: -40 C to 85 C
Weight: 9.5 kg / 20.6 lbs
ACOPOWER 40A MPPT Solar Charge Controller
Manufacturer: ACO Solar
Voltage: 12v/24v DC automatically identifying system voltage
Rated Charge Current: 40 Amp
Nominal System Voltage: 12/24VDC Auto
Max. PV Open Circuit Voltage: 100V (1) 92V (2)
MPPT Voltage Range:V(BAT +2V) – 72V
Rated Charge Power: 520W/12V / 1040W/24V
Battery Type: Sealed(Default)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
Protection:PV short circuit / PV reverse polarity /Battery over voltage /Battery over discharge / Battery reverse polarity / Load overload protection
Storage Temperature: -20C – +70C
Working temperature:-25C – +50C
Enclosure: IP33

Product Manual
